Part Inspection/Metrology

When you require part inspection, 3D scanning can tell you so much more than conventional CMM measurement.

Our part inspection/metrology service includes scanning the part and aligning and comparing the data to an existing CAD master model, which allows us to quickly see deviations over the object or direct us to inspect specific points.

We start with a 3D scan using our metrology grade scanning system, and obtain highly accurate data, measuring the sample provided. Next, with the CAD master model loaded, we align the scan data and the inspection process begins.

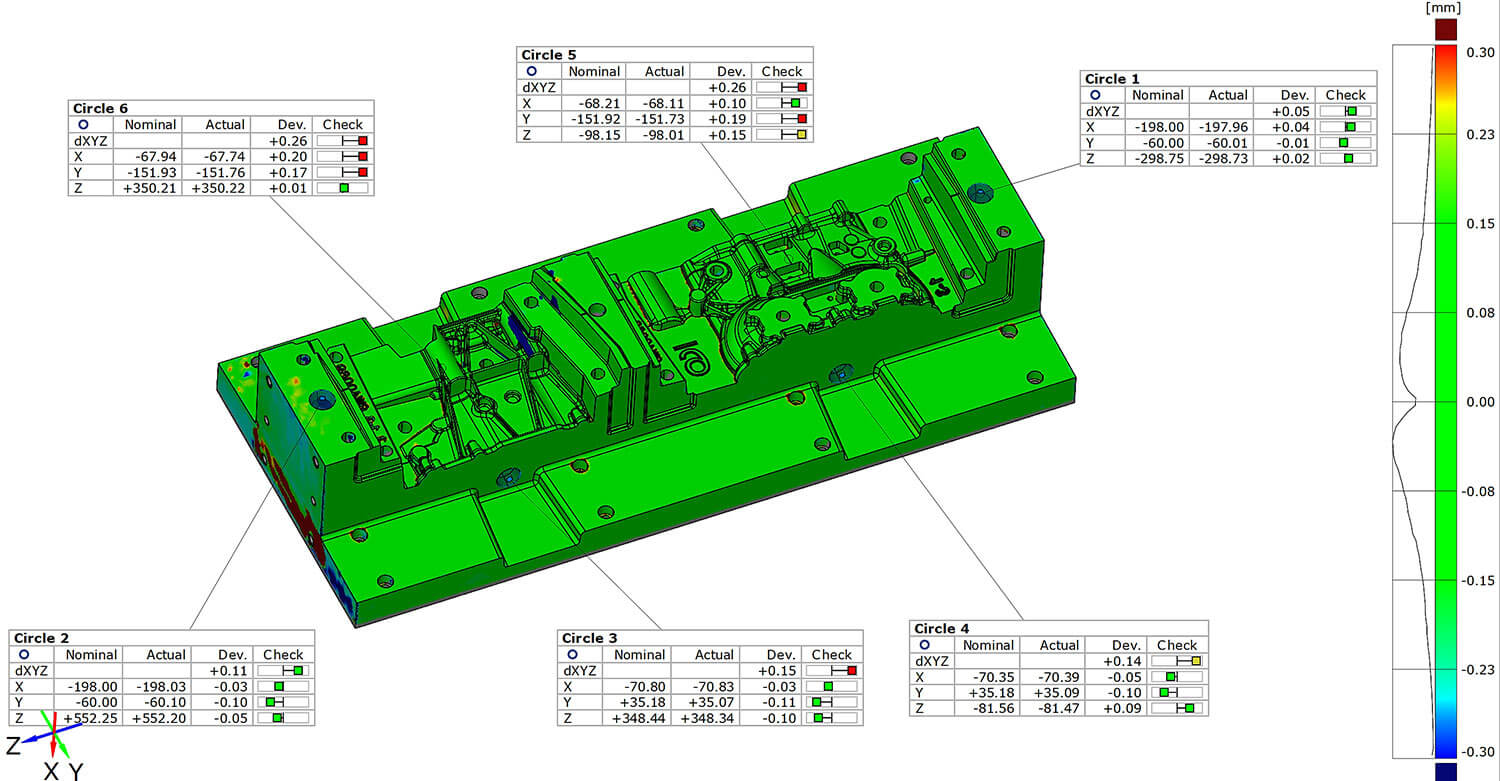

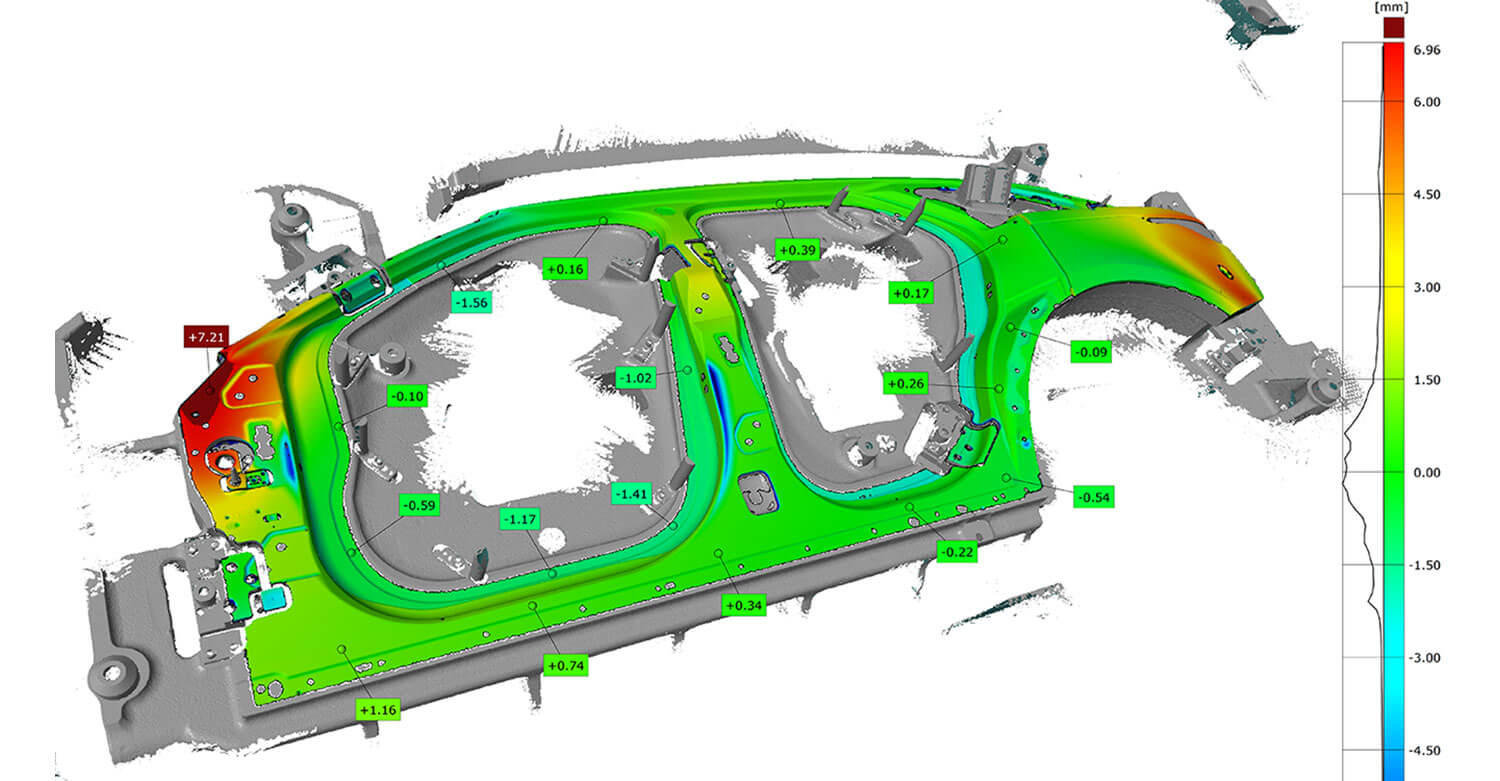

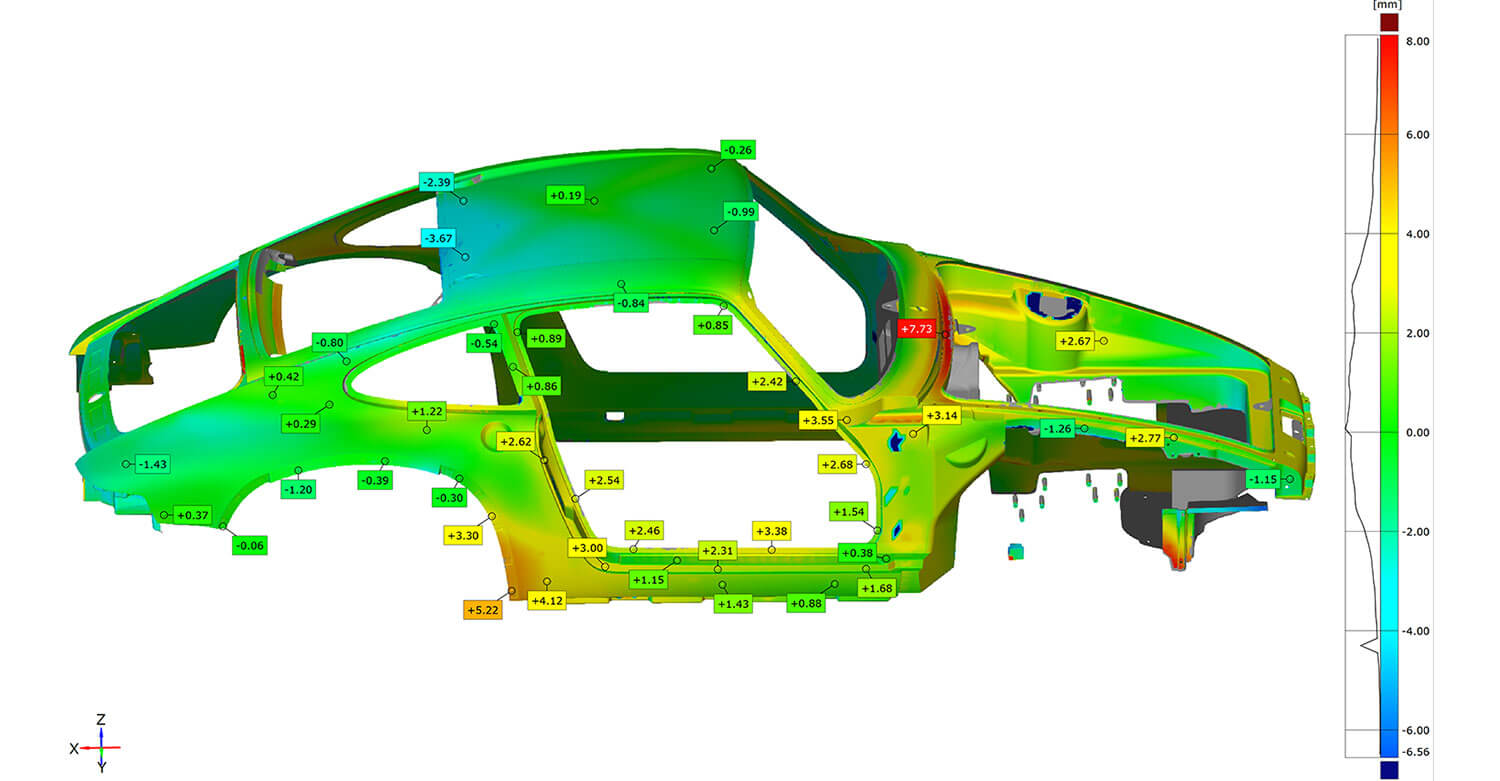

Visualising the deviations of the comparison by means of colour mapping, we have easy-to-read results to quickly understand what the part is doing.

  • Easy-to-see twist & warpage
  • Check CAD revisions match: Sample/CAD

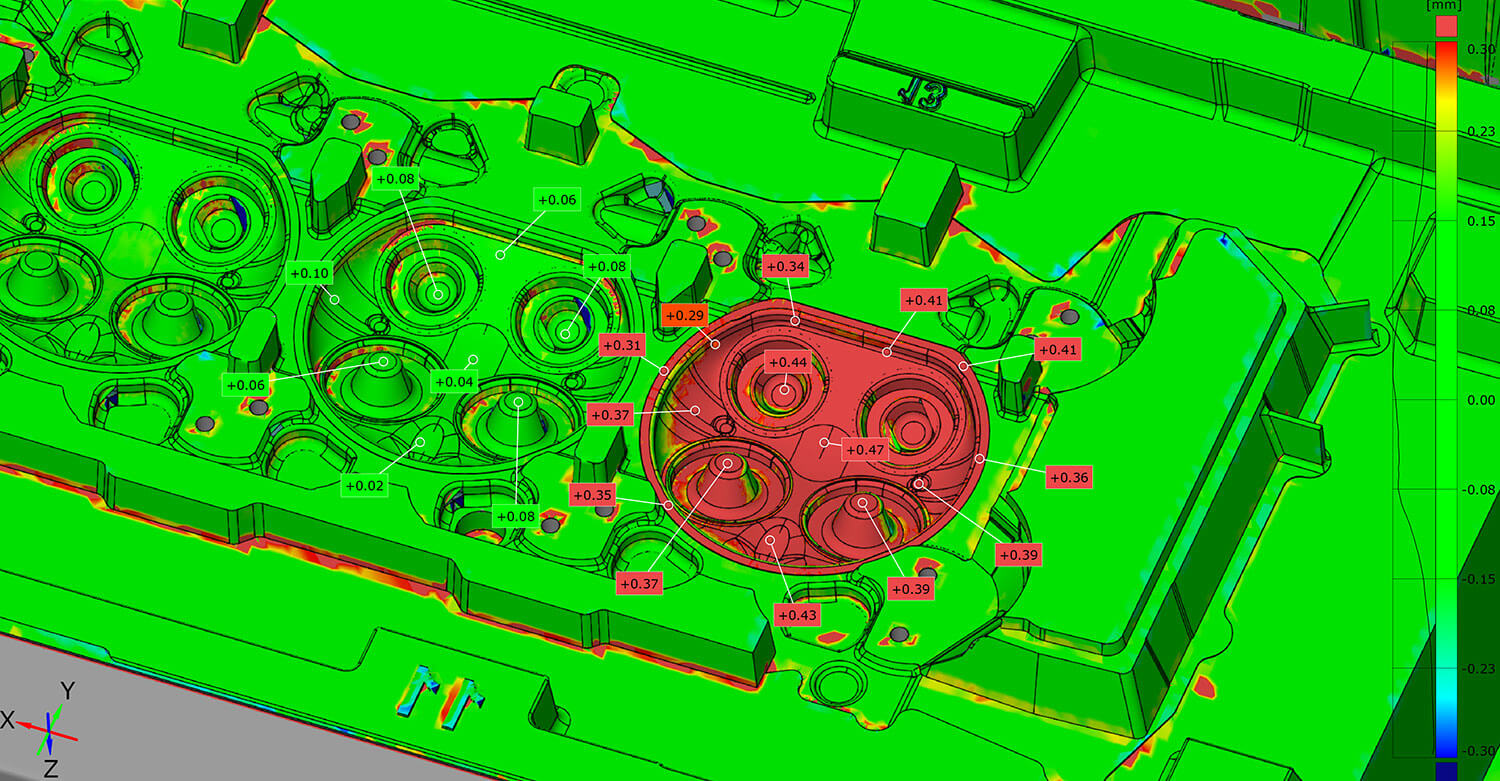

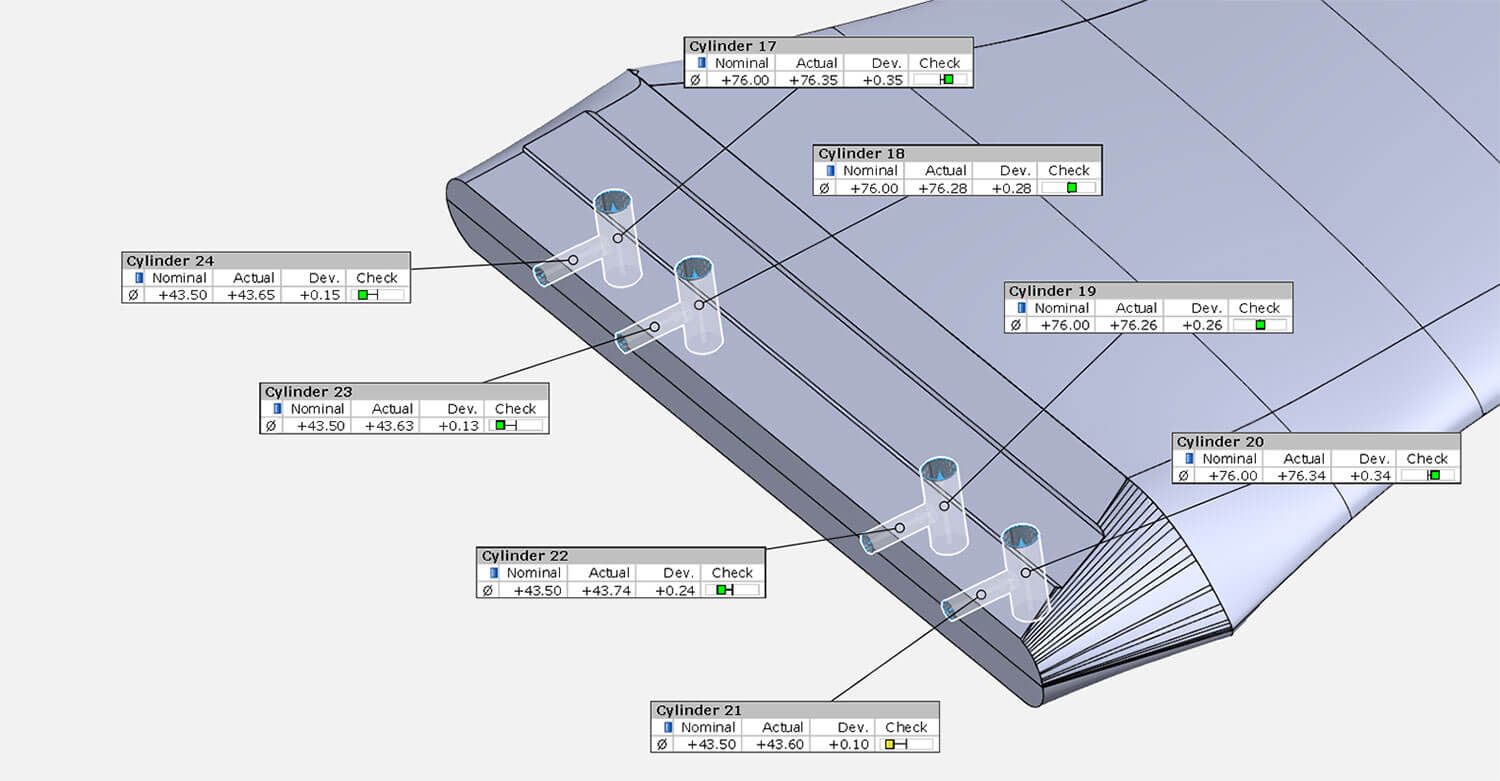

  • Add deviation labels and dimensions

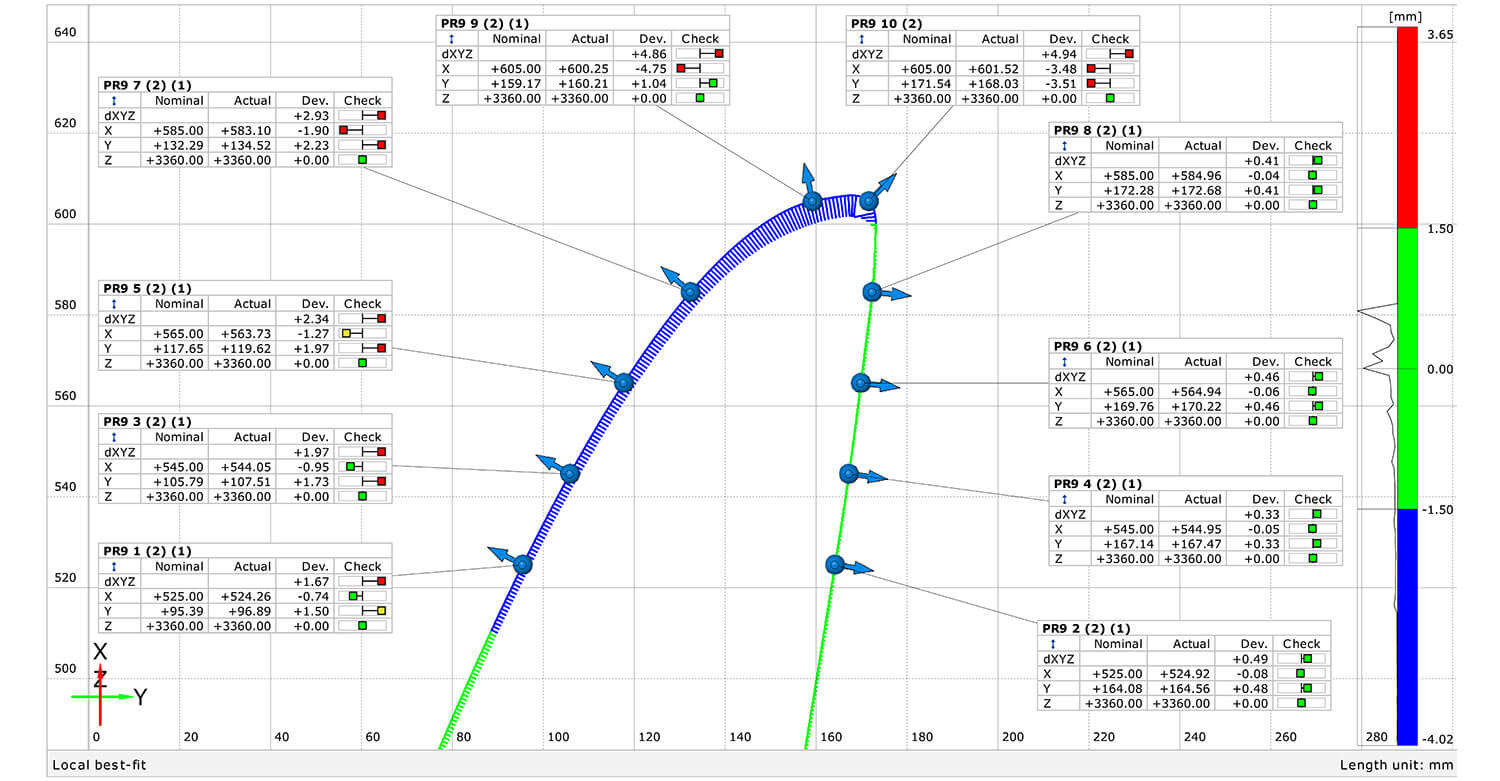

  • Check sections
  • Use multiple alignments to interrogate the sample further
We go further…

Beyond reporting on the dimensional quality we can also use these tools and our engineering experience to analyse the data and look deeper at the root cause and effect of any out-of-specification components or assemblies.

We can check damaged parts to evaluate the extent of change and add quantifiable values so you may make informed decisions on your next steps.

Read our case study on how we helped to understand the effect of damage on a train carriage.

How Capture Point can help you

REVERSE ENGINEERING

We use the very latest metrology grade scanning systems to ensure our reverse engineering process starts with the very best data possible to create CAD models for use in downstream processes.

3D SCANNING

We produce high resolution 3D scans with industry leading accuracy from 0.03mm. We can 3D scan any object, any size, from just a few mm up to 100m plus and any surface, any colour.



7 AXIS CNC MACHINING

We can quickly create large complex models, mold patterns and sculptures milled in a range of materials from woods, foams, model boards and many more.



3D SCANNER HIRE

Get scanning straight away!  Point and shoot 3D scanning with our Peel2 scanner, made by the industry leaders in industrial 3D scanning equipment, Creaform you are guaranteed quality results.

PART INSPECTION / METROLOGY

We scan your parts and align and compare the data to an existing CAD master model, which allows us to quickly see deviations over the object or direct us to inspect specific points.
